A private home cloud for the Raspberry Pi 5. Photos, movies, music, audiobooks, books and news on a box in your house — no subscription, no account with anyone.
This repo is the whole OS: a NixOS flake that builds the exact image Keephaven boxes run. Built solo by @Dafarusd.
Six open-source apps, installed and signed in on first boot:
| For | App |
|---|---|
| Photos | Immich |
| Movies and video | Jellyfin |
| Music | Navidrome |
| Audiobooks | Audiobookshelf |
| Books and comics | Kavita |
| News | FreshRSS |
Around them:
- Its own Wi-Fi network. Works with no internet and no router.
- One password for the Wi-Fi, every app and the network folders.
- Apps you can switch off. Settings → Apps turns Movies, Music, Audiobooks, Books or News off and back on. The files stay on the box. Photos is always on.
- Network folders (SMB) for Movies, Music, Audiobooks and Books, so you can drag files in from any computer.
- A recovery copy of the system on its own partition. If the system partition gets corrupted, the box restores it from that copy on the next boot.
- Signed updates. The box checks once a day, shows an update on the dashboard, and installs only when you tap Install now. It refuses anything not signed by the key in
keys/keephaven-update.pub. - Box-to-box backup. Pair two Keephavens over Tailscale and one keeps a nightly copy of the other. More under Offsite backup.
- Remote access, off by default, through your own Tailscale account.
The app images are pinned by digest and baked into the image. Nothing gets pulled from Docker Hub at runtime.

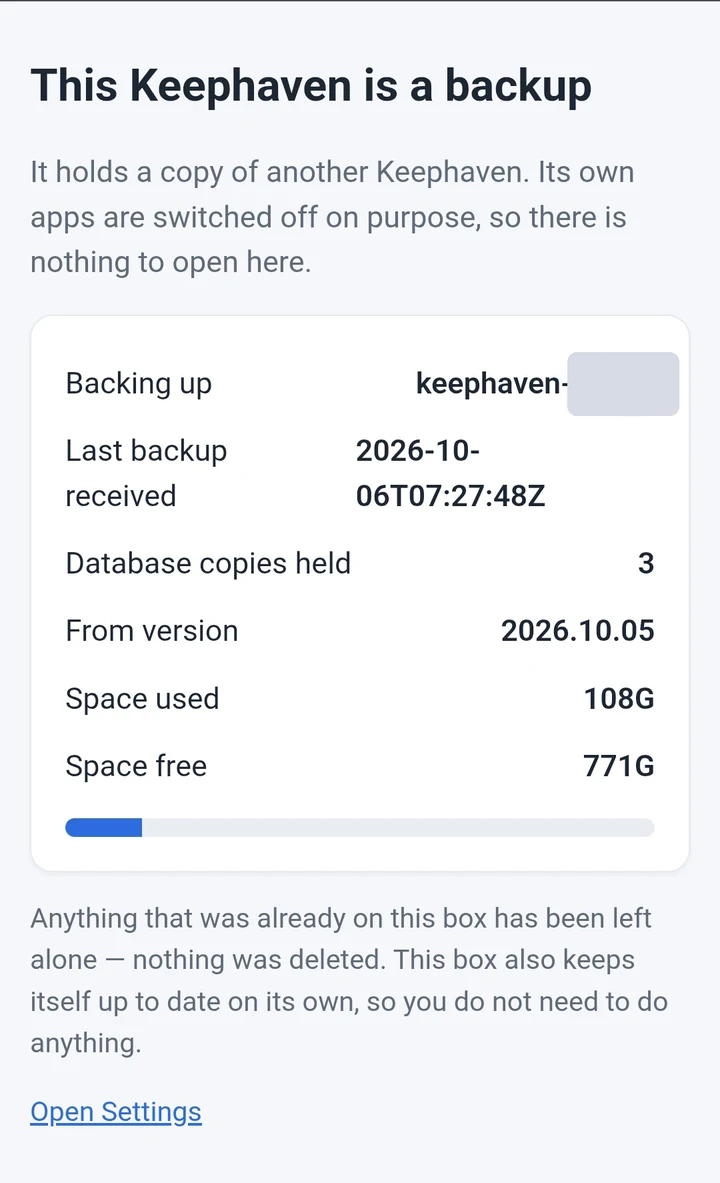

Pair two Keephavens and the main one backs up to the other every night, around 3 am. Put the second box at another house.
- What's sent: the five shared folders (Movies, Music, Audiobooks, Books, Photos), Immich's own library, and a nightly dump of Immich's database. The backup box keeps the last 3 dumps.
- The backup box only receives. Its end is a forced-command rsync receiver that refuses pulls and every delete option (
modules/replication.nix). - The sender checks who it's talking to: the backup box's SSH host key and its Tailscale node key (
modules/replication-sender.nix). - One tap promotes the backup to main (
modules/promote.nix). - A backup box installs updates by itself.
Limits: it's nightly, there's no version history, it needs remote access (Tailscale) on both boxes, the copy on the backup box isn't encrypted at rest, and app state (watch history, playlists, reading positions, News subscriptions) isn't part of it.
More: https://keephaven.co/backup
Current release: 2026.10.05 — the same version the update server hands out to every box. What changed in each release: https://keephaven.co/releases
Step-by-step setup lives on the site: https://keephaven.co/download#setup
- File:
keephaven-2026.10.05.img.zst - Size: 6,266,737,924 bytes compressed, 35,445,014,528 bytes unpacked
- SHA-256:
004efab68db3ebcfc44a811f3db626ffc919e9dc13c1a3f23b8a108819d87bd8
There's also a Photos edition that runs only Immich. Its image is on the same download page.
Check it before you flash:
sha256sum keephaven-2026.10.05.img.zst
- A Raspberry Pi 5. Tested on the 8 GB model.
- An NVMe SSD on a Pi 5 NVMe case or HAT. Tested with a Samsung 990 PRO 1 TB. The system takes the first 35.4 GB and your files get the rest.
- A computer to write the image to the SSD.
- A micro-HDMI to HDMI cable and a TV or monitor, to read the setup password off the screen. Or a microSD card with Raspberry Pi OS, the older way (see First boot).
Some NVMe cases need PCIE_PROBE=1 in the Pi's EEPROM config before the Pi sees the drive. That's a Pi firmware setting, not part of this image.
These commands are for Linux. Find your SSD first — writing to the wrong disk erases it:
lsblk -o NAME,SIZE,MODEL,TRAN
Then, with your SSD's name in place of sdX:
zstd -d keephaven-2026.10.05.img.zst -o keephaven.img
sudo blkdiscard -f /dev/sdX
sudo dd if=keephaven.img of=/dev/sdX bs=4M status=progress conv=fsync
sync
blkdiscard wipes the drive first. Skip it and a drive that had Keephaven on it before brings back its old Wi-Fi name and password, because first boot adopts any existing data partition instead of making a new one.
-
Put the SSD in the Pi and plug in power. Ethernet is optional.
-
Within about 3 minutes a Wi-Fi network named
Keephaven-plus five characters shows up. The box made that name, and a random password, on this first boot. -
Sold boxes carry that password on a sticker. On a box you flashed yourself, the easy way is a TV. Plug a micro-HDMI cable from either of the Pi's HDMI ports into a TV or monitor. Within about 3 minutes of first boot the screen shows the Wi-Fi name, the password and the setup address, in large text. The password leaves the screen for good once setup is done.
No TV handy? Read it off the drive instead, using the Pi itself: unplug it at the wall, put in a microSD card with Raspberry Pi OS, leave the SSD connected, and power on. It boots Pi OS from the card. Then run:
sudo mkdir -p /mnt/keephaven sudo mount -o ro /dev/disk/by-label/cloudunit-data /mnt/keephaven sudo cat /mnt/keephaven/unit.envYou'll see three lines.
UNIT_PASSWORDis your password. Power off, take the card out, and power on again. It boots Keephaven.If it boots Keephaven even with the card in, your Pi is set to try the SSD first. With a USB SSD, unplug it until Pi OS has started, then plug it back in. No SD card? Move the SSD to any Linux computer and run the same three commands. Windows and macOS can't read the data partition.
-
Join the
Keephaven-…network with that password. The setup page opens by itself. If it doesn't, go tohttp://192.168.50.1. -

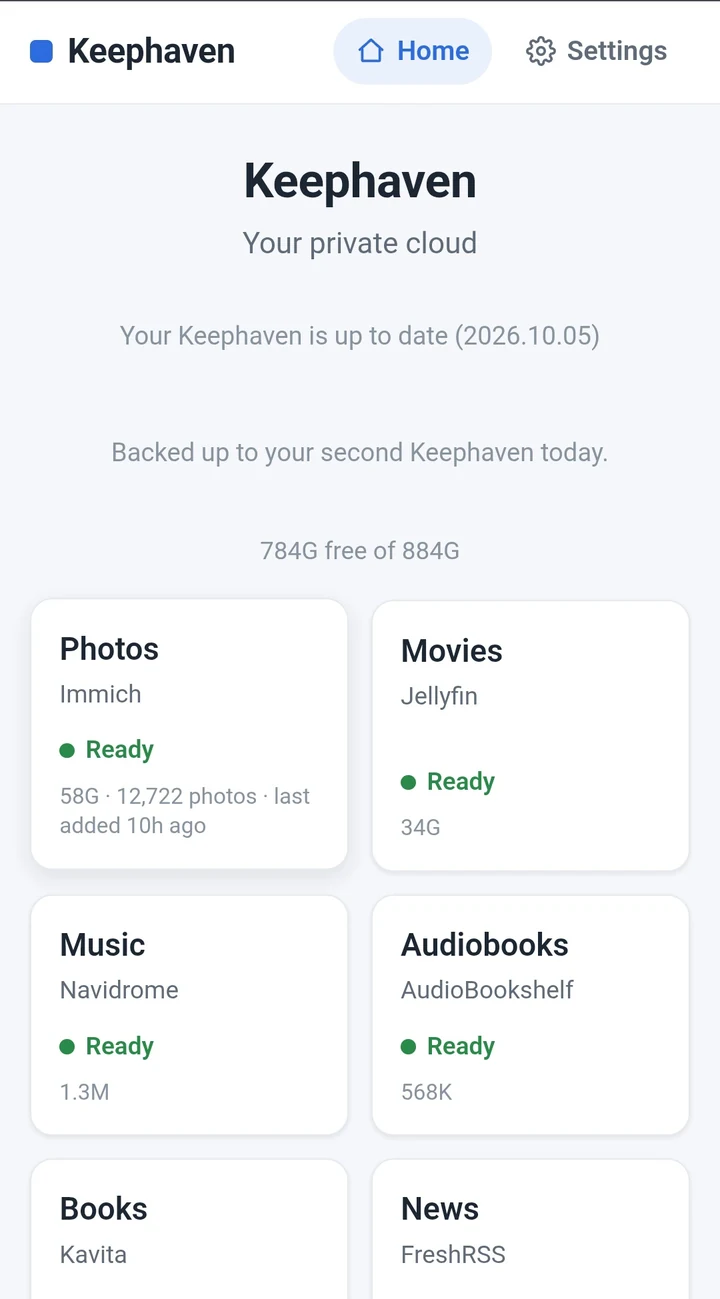

Finish setup. The dashboard links all six apps. Username
keephaven, same password. Photos (Immich) signs in withkeephaven@localinstead of a username.
Settings live at port 8888 on the box. Changing the password there changes it everywhere. Settings → Apps turns an app off or back on.
You need Nix with flakes, plus either an aarch64 machine or QEMU emulation. On x86 Linux that means binfmt for aarch64 and extra-platforms = aarch64-linux in your Nix config.
git clone https://github.com/dafarusd/keephaven
cd keephaven
nix build .#packages.aarch64-linux.prod --accept-flake-config -o result-prod
The image lands in result-prod/sd-image/. --accept-flake-config lets Nix use the nixos-raspberrypi binary cache, so the Pi kernel downloads instead of compiling.
To confirm this source is what built the download:
nix eval --raw .#packages.aarch64-linux.prod.outPath --accept-flake-config
At this commit it prints /nix/store/jgama58m7f0fh2b1d1fddmw8x3b911w8-nixos-image-rpi5-kernel.img.zst, the same store path the published image was built as. Same source, same inputs. Your own build's bytes may still differ from the download, since that isn't checked bit for bit.
There are two builds from one module list:
- prod — no SSH key at all, SSH only over Tailscale. This is the download.
- dev — bakes your SSH public key and opens SSH on the LAN, for poking at a bench box. Put your key in
keys/dev-admin.pub, rungit add -f keys/dev-admin.pub, then build.#packages.aarch64-linux.dev. It won't build without a key.
Keephaven's own code makes one outside call. Once a day it fetches manifest.json from https://updates.keephaven.co/. Apart from your IP address, which any request carries, the only thing it says about the box is its version, in the User-Agent header. No serial, no account, no ID.
The Tailscale client doesn't run until you turn on remote access, and stops when you turn it off. It runs with --no-logs-no-support, so it doesn't upload its logs. The box also sets its clock from a public NTP pool. The six apps are stock upstream builds with their own defaults.
If you'd rather not get updates from here, build with your own keephaven.updateBaseUrl and your own key in keys/keephaven-update.pub.
flake.nix— the prod and dev builds.modules/— one file per piece: disk layout and recovery, the setup wizard, dashboard, settings, updates, Wi-Fi access point, Tailscale, backup.modules/access-profile.nix— the only file that differs between prod and dev.compose/— the app stacks.keys/keephaven-update.pub— the public key updates are checked against.
- Tested on a Pi 5 8 GB booting from NVMe only. SD card boot and the 4 GB Pi haven't been tested.
- Without a TV or monitor on the Pi's HDMI port, reading the setup password takes one extra boot from a Raspberry Pi OS SD card, or a Linux computer.
- Code comments point at a build log and decision notes that aren't in this repo.
compose/vaultwardenis here but not switched on.
AGPL-3.0 — see LICENSE. Copyright (c) 2026 Keephaven LLC. Commercial licenses for Keephaven's own code are available from Keephaven LLC; see NOTICE.
Keephaven™ and the Keephaven logo are trademarks of Keephaven LLC. The license covers the code, not the name or the logo.
The apps inside the image keep their own licenses: Immich AGPL-3.0, Jellyfin GPL-2.0, Navidrome GPL-3.0, Audiobookshelf GPL-3.0, Kavita GPL-3.0, FreshRSS AGPL-3.0. Their source is at the links in the table above.
